A quoted encoder can match a shaft diameter and still fail because its output circuit, pinout, resolution convention, or mounting geometry does not match the machine. By the end, you will know how to specify the encoder, test supplier quotations, and distinguish usable Delhi stock from a part that creates integration or procurement risk.
Key takeaways
- Choose rotary or linear feedback before requesting encoder quotations.
- Match shaft, mounting, resolution, speed and load to the machine.
- Confirm controller interface, output type, voltage and maximum operating speed.
- Request environmental ratings, safety documents, batch details and inspection records.
Choose the encoder type before you contact a supplier

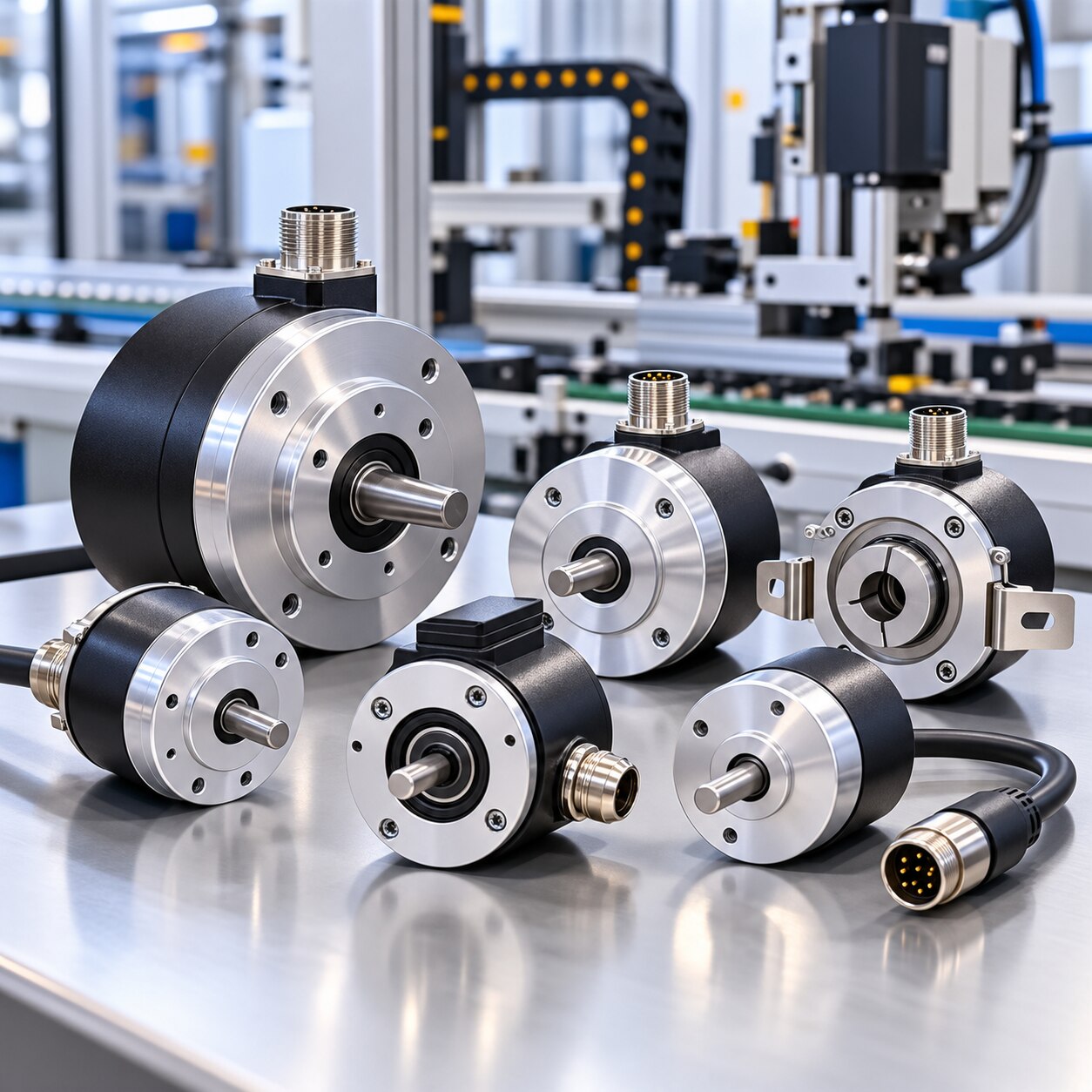

Start by deciding whether the machine needs rotary or linear feedback. A rotary encoder suits a motor, spindle, conveyor roller, or indexing shaft; a linear encoder measures carriage or slide position directly. Then choose incremental or absolute output, and optical or magnetic sensing, before asking an industrial encoder supplier in Delhi for prices.
| Type | What it provides | When it applies |
|---|---|---|
| Rotary incremental | A, B and optional Z pulses; position is calculated from movement | Speed, direction and relative position on conveyors, motors and counting systems |
| Rotary absolute | A unique position value after power-up | Servo axes, elevators and machines that must recover position without homing |
| Linear encoder | Position feedback along a scale | CNC slides, stages and precision machine tools |
| Optical sensing | Fine resolution from a patterned disc or scale | Clean, protected machines requiring high measurement detail |
| Magnetic sensing | Position feedback from magnetic poles or rings | Dusty, wet or shock-prone equipment where contamination threatens optical systems |
Your RFQ must identify the electrical interface before the price. State the supply voltage, resolution, maximum input frequency and output type: single-ended push-pull, open-collector, or differential RS-422 line driver. A controller expecting A, /A, B, /B and index signals will not accept every pulse output.
For a replacement, include these details:
- Existing part number, connector pinout, cable exit and direction convention
- Shaft or bore diameter, insertion depth, mounting pattern and coupling arrangement
- Required pulses per revolution or absolute protocol, such as SSI, BiSS-C or CANopen
- Maximum RPM, radial and axial loads, operating temperature and IP rating
- Serial or lot marking required for receiving inspection and traceability
Match the encoder’s mechanics and performance to the machine
A matching bore alone does not establish compatibility. The encoder must suit the shaft geometry, mounting face, available clearance, and motion loads; a forced fit can damage bearings or introduce position error.
If you buy industrial encoders in delhi from a generic listing, state these details in the RFQ:
- Solid shaft or hollow shaft, shaft diameter, usable insertion depth, and any shoulder or thread dimensions.
- Flange type, bolt-circle diameter, mounting-hole spacing, and cable-exit direction.
- Keyway, clamp, set-screw, or flexible-coupling arrangement; do not assume the coupling is included.
- Maximum radial and axial shaft loads, operating speed in RPM, acceleration, and duty cycle.
- Required pulses per revolution or position resolution, plus the allowable accuracy and repeatability.
- For a replacement, the existing part number, shaft dimensions, mounting geometry, index position, and direction convention.
| Mechanical arrangement | Check before ordering | What goes wrong if mismatched |
|---|---|---|
| Solid shaft | Coupling bore, coupling length, alignment, and radial load | Misalignment transfers force into the encoder bearings |
| Hollow shaft | Bore diameter, insertion depth, clamp clearance, and anti-rotation arm | The shaft bottoms out, slips, or overloads the clamp |
| Blind or recessed mounting | Flange depth, bolt access, connector clearance, and shaft shoulder | The body fits the drawing but cannot be seated or serviced |
Treat accuracy and resolution as separate figures. High electronic resolution cannot correct bearing runout, mounting eccentricity, coupling backlash, interpolation error, or poor alignment. Compare the encoder’s maximum RPM and shaft-load ratings with the machine’s worst operating condition, not its normal running speed.
Confirm the controller interface, resolution and speed limit
Get the controller manual before you compare encoder prices. Match its input type to the encoder output: single-ended push-pull, open-collector, and differential RS-422 line-driver signals are not interchangeable. Differential A, /A, B, /B, and index outputs suit long cables and electrically noisy automation equipment better than single-ended signals.
For an absolute encoder, “absolute” is not enough. Confirm the protocol, electrical layer, data format, bit length, cycle time, and whether the controller supports SSI, BiSS-C, CANopen, EtherCAT, or another interface directly. A gateway adds wiring, configuration, and another failure point.
Do not accept “resolution” without its unit. Ask whether the quoted figure means pulses per revolution, cycles per revolution, or decoded counts per revolution. With four-times quadrature decoding, one A/B cycle becomes four controller counts, so two quotations can show different numbers for the same encoder.
Check speed against output frequency, not the encoder’s maximum RPM alone. Use PPR × RPM ÷ 60 to estimate fundamental pulse frequency, then verify the encoder and controller support the higher edge rate produced by quadrature decoding. High PPR can overload a controller at shaft speed.
For a replacement, send these records with the RFQ:
- Existing part number, supply voltage, output levels, connector pinout, cable exit, mounting geometry, shaft dimensions, direction convention, index position, and programmed absolute-data or preset settings.
A physically similar encoder can still reverse direction or miss homing if its phase, pinout, or index position differs. Buyers sourcing encoders for automation equipment in Delhi should also separate resolution from accuracy: bearing runout, eccentric mounting, interpolation error, backlash, and alignment can dominate actual position error.
Check environmental ratings, safety status and receiving documents
Before installation, quarantine the encoder until its environmental rating, safety status and identity match the application and purchase order. Ask a rotary encoder supplier in Delhi for the exact IP rating tested under IEC 60529; IP protection does not prove resistance to oil, coolant, chemicals, UV, salt spray or washdown pressure.
Check these items against the manufacturer’s technical data:
- Environment: operating and storage temperature, humidity, shock, vibration, cable flex life, electromagnetic exposure, housing material, seals, connector protection and cable-jacket compatibility.
- Safety: conformity documentation and any stated safety function or certification required by your machine risk assessment. Do not treat a standard encoder as a safety encoder because it has an industrial housing.
- Traceability: manufacturer part number, revision, country of origin, serial or lot marking, warranty terms and date-coded packaging.
| Check | Evidence | Installation stop condition |
|---|---|---|
| Environment | Datasheet IP test rating and material compatibility | The plant uses coolant or washdown that the seals or cable do not support |
| Safety | Exact model conformity and safety documentation | The supplied variant lacks documentation required by the machine design |
| Traceability | Part number, revision, serial or lot match the purchase order | Markings are missing, altered or inconsistent |
Before mounting, verify the connector and pinout, measure supply current and output behaviour, then perform a controlled rotation test. These checks expose wrong variants, relabelled stock and grey-market parts before they reach a costly motion system.
Compare Delhi sourcing options with a complete RFQ
Ask every Delhi quote to separate unit price, stock certainty, import exposure and technical support. A low price is not a saving if a missing connector, gateway or coupling stops installation.
| Option | Stock and lead-time evidence | Risk and cost to compare |
|---|---|---|
| Local distributor | State physically available, allocated, or ex-stock quantity; confirm dispatch date. | Fast replacement, but verify lot traceability and variant. |
| Imported supply | Identify factory-order quantity and whether lead time excludes import clearance. | Lower price can carry customs delay, freight and warranty return costs. |
| Supported sourcing | Include drawing review, interface check, accessories and commissioning help. | Higher service cost can prevent a wrong-variant purchase. |
Use one RFQ for each industrial encoder supplier in Delhi so the quotations remain comparable. Include:
- Manufacturer part number and revision, encoder type, supply voltage, output interface, resolution, maximum RPM and IP rating.
- Solid or hollow shaft, shaft diameter, allowable insertion depth, flange pattern, keyway or clamp, shaft loads and flexible coupling requirement.
- Datasheet, dimensional drawing, wiring or pinout diagram, conformity documents, country of origin, warranty, serial or lot marking and replacement policy.
- Stock status, quantity available, quoted lead time, clearance assumption, mating connector, cable, converter, programming tool and commissioning charges.
A rotary encoder supplier in Delhi offering only “equivalent” stock has not answered the RFQ; demand a line-by-line comparison. Before you buy industrial encoders in Delhi, MAXGTECH can help organise that evidence across imported and local options, but you should approve the exact part number.
Frequently asked questions
How do I choose between a rotary and linear encoder?
Choose a rotary encoder for motor, spindle, conveyor-roller or indexing-shaft feedback. Choose a linear encoder when the machine must measure carriage or slide position directly.
Which encoder specifications should I include in an RFQ?
State the encoder type, incremental or absolute output, sensing technology, shaft or mounting details, resolution, supply voltage, controller interface, operating speed and environmental requirements.
How can I verify that an encoder will work with my controller?
Match the encoder’s output format, signal levels, supply voltage, connector and resolution to the controller input. Check the maximum pulse frequency against the machine’s speed and encoder resolution.
What documents should I request from a Delhi encoder supplier?
Request the datasheet, wiring or pinout drawing, environmental rating, safety status, country of origin, batch or serial details, warranty terms and inspection or test records.
