A load cell can deliver accurate force data while producing wrong results if the capacity, mounting, cabling, or signal interface is mismatched. By the end, you will be able to match sensor types to Delhi applications, specify the electrical and mechanical details, and distinguish a calibrated load cell from a calibrated weighing system.
Key takeaways
- Match the load cell capacity to the total load, impact, and off-centre forces.
- Use mounting surfaces that are rigid, level, and aligned with the applied force.
- Choose output, protection rating, temperature range, and approvals for the installation.
- Confirm calibration, wiring, lead time, and technical support before sourcing.
How a load cell turns force into a usable measurement
A load cell converts force into an electrical signal through strain gauges bonded to a metal body. Applied force causes a minute change in the body’s shape, which changes each gauge’s resistance. The gauges form a Wheatstone bridge powered by an excitation voltage, commonly producing an output rated in millivolts per volt.
An amplifier, analogue-to-digital converter, and weighing controller then turn that low-level signal into a weight or force value. The cell measures along its intended load axis; side loads, bending, torsion, cable pull, or rigid pipework can create errors even when calibration is correct.
Choosing load cells for industrial machines depends on how the force reaches the sensor:

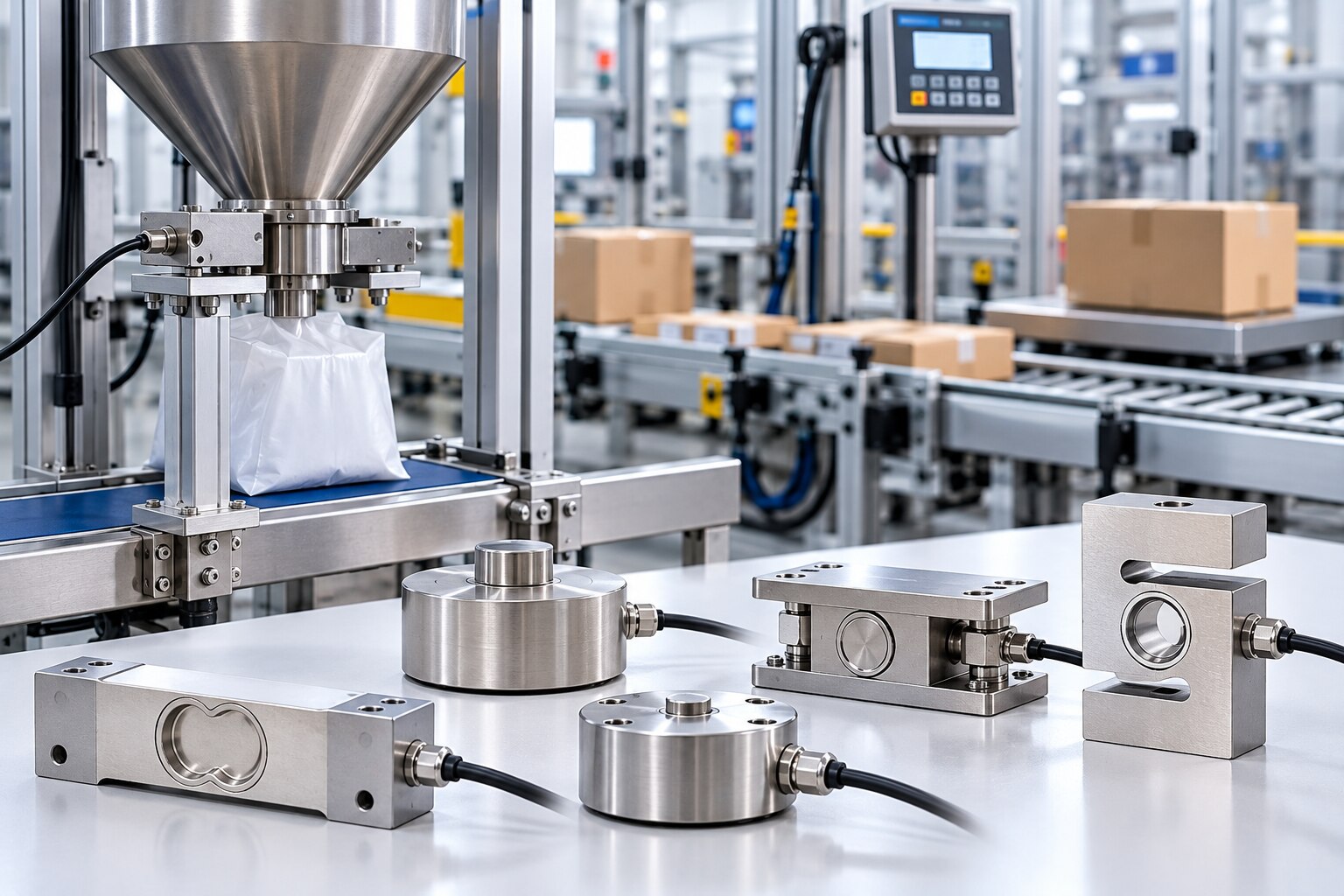

| Type | Best fit | Main caution |
|---|---|---|
| Single-point | Small platforms, bench scales, bagging machines | Mount the platform rigidly and keep load distribution within specification |
| Bending-beam | Medium-capacity platforms and checkweighers | Off-centre loading can distort readings |
| Shear-beam | Machine weighing, conveyors, batching equipment | Protect the mounting faces from frame deflection |
| Compression or canister | Tanks, hoppers, silos, truck scales | Use flexible connections and restraints that do not bypass the weighing path |
| Tension or S-type | Hanging hoppers, crane scales, web-tension systems | Keep the load axial and prevent swinging |
| Axle | Vehicle and axle weighing | Control approach speed and impact forces |
For presses, assembly verification, overload protection, and closed-loop force control, select a cell and conditioner for sampling rate, filtering, response time, and overload behaviour—not static accuracy alone.
How to select and install load cells for weighing equipment
Select rated capacity from the complete load, not the product weight alone. Include the vessel, platform, fixtures, maximum material, off-centre loading, and shock; keep normal operating load below the cell’s rated capacity. A gross overload rating protects against mistakes, while ultimate overload is not a working target.
1. Match the cell to the force direction and structure. Use single-point cells for small platforms, shear- or bending-beam cells for medium platforms, compression cells for tanks and hoppers, and tension or S-type cells for suspended loads. Confirm mounting dimensions, load-button contact, bolt grade, alignment, and whether the frame transfers force without binding.
2. Specify performance separately: accuracy class, rated output in mV/V, repeatability, hysteresis, creep, zero return, minimum dead load, temperature effect, excitation range, and safe overload. Creep matters when a load stays on the scale; repeatability matters when the same load is applied repeatedly.
3. Select environmental protection for the site. State operating temperature, humidity, washdown exposure, dust, chemicals, material, ingress-protection rating, cable length, and connector or gland type. Choose stainless steel and sealed construction for corrosive or wet areas.
4. Install level mounts with equal load distribution. Check corner response, cable routing, grounding, and junction-box trimming; digital adjustment cannot correct a flexible frame or partially unloaded cell.
5. Calibrate load cells for weighing equipment as the installed system. Test the platform, junction box, indicator linearity, corner response, and operating range, not only the individual sensor. OIML R 60 covers cells; OIML R 76 concerns complete non-automatic weighing instruments.
Where industrial weighing systems use load cells in Delhi
Choose the cell by how the load reaches it, not only by the machine’s name. Small, low-profile platforms commonly use single-point cells; larger platforms and machine frames use bending-beam or shear-beam cells. Compression cells carry loads directly from above, while tension cells measure a suspended load.
| Cell type | Typical Delhi application | Why it fits |
|---|---|---|
| Single-point | Retail, floor, bench, and checkweighing platforms | Handles off-centre loads on a compact platform |
| Beam | Medium-capacity platforms, batching machines, and conveyor scales | Supports distributed loads through mounting points |
| Compression | Tanks, hoppers, silos, truck scales, and heavy platforms | Carries vertical loads with high capacity |
| Tension or S-type | Hanging hoppers, crane scales, bagging machines, and web-tension equipment | Measures a load suspended from the sensor |
| Axle | Portable axle pads and weighbridge systems | Measures vehicle axle or wheel-group loads |
Load cell applications for industrial weighing systems in Delhi also include filling and dosing, press-force monitoring, assembly verification, overload protection, material testing, and closed-loop force control. These jobs need suitable sampling speed, filtering, response time, and overload behaviour; static accuracy alone will not stop an unstable fill or a missed press-force limit.
A truck scale needs more than correctly rated axle cells. Check the deck structure, approach alignment, vehicle speed, shock loading, and corner response, then calibrate the installed system. A sensor certificate alone cannot prove that the completed scale weighs accurately.
How load cell applications in automation connect to control systems
Load cell applications in automation depend on more than accurate force measurement. A PLC should not receive a load cell’s raw millivolt signal directly. Route the cell through a shielded junction box and signal conditioner, then send the PLC a calibrated 4–20 mA, 0–10 V, or digital fieldbus value.
Choose six-wire sensing for long cable runs, because excitation-voltage drop can shift the reading.
The control path should be specified as a signal chain:
- Load cell and junction box: sum cells, trim corners, and preserve shielding; keep piping, conduit, and cable tension out of the weighing path.
- Weight transmitter: provide excitation, bridge completion, filtering, tare, span calibration, and diagnostics.
- PLC input: scale the signal into kilograms, newtons, or percent full, with a defined update rate.
- HMI and alarm logic: display gross or net weight, trend stability, and identify overload, sensor-break, out-of-range, and communication faults.
For filling, dosing, and checkweighing, set the sampling rate and digital filter against the machine cycle. Excessive filtering hides fast overfill; too little filtering makes a valve or feeder hunt around the target.
Closed-loop force control uses measurement error to adjust an actuator. Add high-high and low-low limits, then define the machine’s safe state when an alarm occurs. Test alarms with simulated loads and disconnected sensors before production.
What to specify when sourcing an industrial load cell supplier in Delhi
A purchase request should define the force, signal, environment, and evidence required—not merely say “industrial load cell.” State the maximum live load plus dead load, then add allowance for impact, uneven loading, conveyor start/stop forces, and off-centre loading. Do not oversize blindly: a small normal load produces poorer usable resolution on a very high-capacity cell.
- Load direction, rated capacity, accuracy class, repeatability, hysteresis, creep limit, and safe and ultimate overload ratings.
- Rated output in mV/V, excitation-voltage range, temperature-compensated range, operating temperature, and cable length.
- IP rating, construction material, connector or gland type, mounting dimensions, bolt pattern, and approved loading-axis arrangement.
- Calibration certificate with serial number, test points, uncertainty, traceability, and calibration date.
| Document or check | What it establishes | What it does not establish |
|---|---|---|
| Individual-cell calibration | Sensor output at stated loads and conditions | Platform corner response, junction-box trimming, indicator linearity, or mounting errors |
| OIML R 60 classification | Load-cell metrological performance | Compliance of the finished weighing instrument |
| OIML R 76 approval or applicable Legal Metrology records | Suitability of a complete non-automatic weighing instrument | Automatic process equipment unless its specific rules also apply |
Ask the industrial load cell supplier in Delhi whether the final platform, hopper, or machine requires Legal Metrology approval, verification, and stamping in India. Specify installed-system calibration where possible; side loads, torsion, cable pull, binding, and a deflecting mounting surface can corrupt a perfect sensor.
MAXGTECH can use this checklist when coordinating a sourced component, so an equivalent substitute does not quietly change the signal, dimensions, or compliance evidence.
Frequently asked questions
How does a load cell turn force into a usable measurement?
Strain gauges bonded to a metal body change resistance as the body deforms. A Wheatstone bridge converts that change into a millivolt-per-volt signal for an indicator or controller.
How do you select and install load cells for weighing equipment?
Select capacity, accuracy class, environmental protection, excitation, output, and mounting style. Install the cell on a rigid, level surface with the applied force aligned through its measurement axis.
Where do industrial weighing systems use load cells in Delhi?
Applications include platform scales, hopper and tank weighing, batching systems, conveyor scales, truck weighing, process weighing, and material-handling equipment.
How do load cell applications in automation connect to control systems?
A junction box, amplifier, or weight transmitter conditions the millivolt signal and sends a readable value to a PLC, HMI, indicator, or industrial network for monitoring and control.
What should you specify when sourcing an industrial load cell supplier in Delhi?
Specify capacity, accuracy, dimensions, mounting details, signal type, excitation, ingress protection, operating temperature, calibration documents, stock, delivery, and technical support.
